We can help you meet the challenges of product testing and inspection through our comprehensive capabilities, tailored specifically to your products' unique requirements.

Testing Equipments

Our extensive testing capabilities are more than enough for any need. Depending on product design, component selection, production procedure and batch volume, we aim to draw together a testing strategy that increases production yields, reduces manufacturing costs, and delivers the highest product quality. Below are some highlights of our total testing capabilities:

Automated Optical Inspection (AOI)

In ensuring the accuracy of placement and soldering, AOI is a powerful tool both for continuous process monitoring and to filter out defects for repair.

In-Circuit Test (ICT)

Our ICT and ATE capabilities enable efficient testing for a wide range of assembly and component defects, with an ability for more than 5000 testing points and a maximum of 73cm in board width.

Flying Probe Test

Our flying probe testing capability gives you the flexibility to give prototypes and small volume builds full testing coverage, without creating expensive custom fixtures.

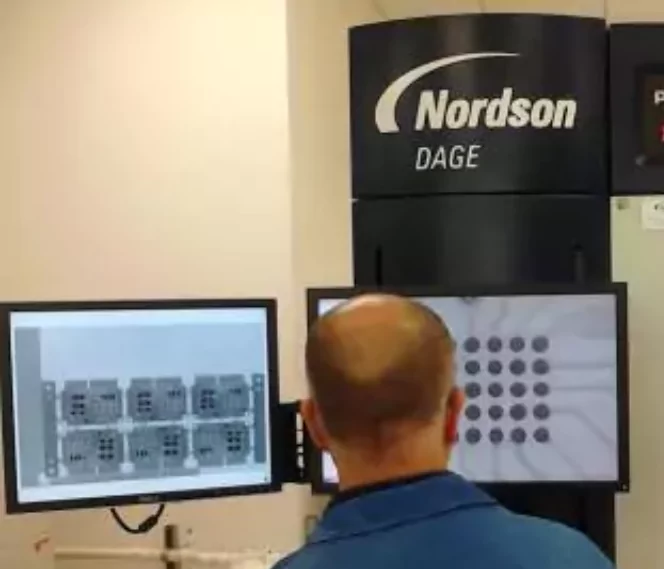

X-ray Inspection
(3D & 2D)

For BGA, QFN and through-hole components, our X-ray inspection provides the visual verification against voids, shorts, insufficient fill.

Function Test

Every product has different functions, so its needs a different approach to test. Our competent engineering team creates efficient custom testing systems in-house, perfectly suited to your exact product.

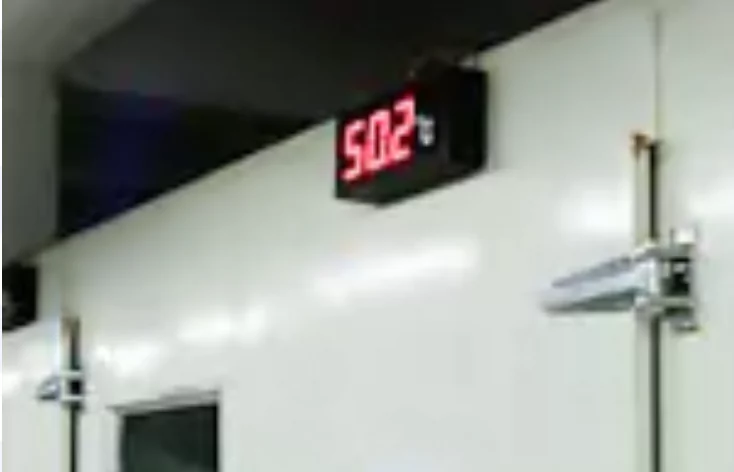

Burn-In Test

Our burn-in testing provides the verifications you need that your products will perform, survive and last in real-life environments.

3D X-ray (Ultra High Resolution) Inspection
for PCB Assembly / PCBA

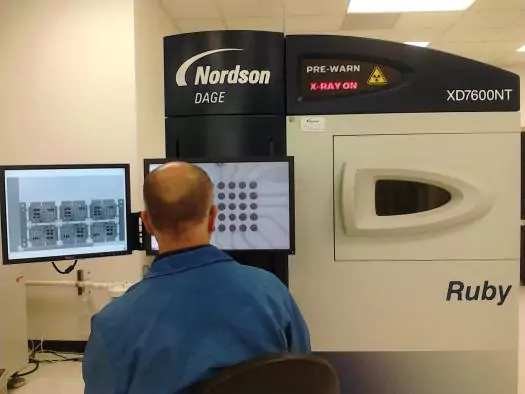

Nordson DAGE Ruby X-ray
Inspection System

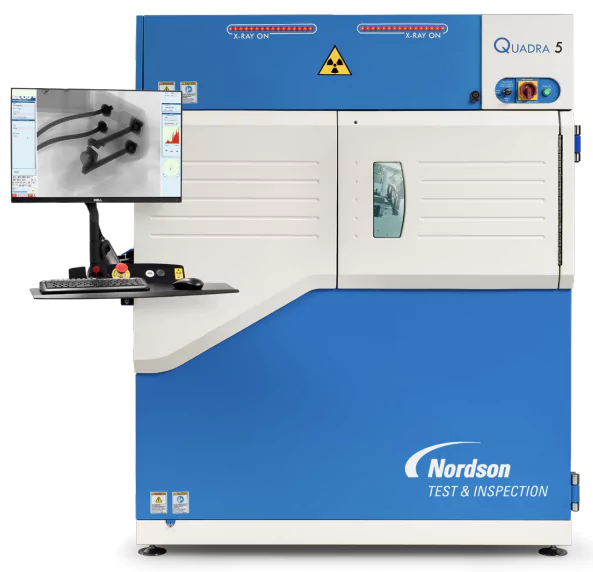

Nordson Quadra™ 5 X-ray
Inspection System

PCB assembly, printed circuit board assembly, PCB circuit board Ball Grid Array (BGA), and Chip Scale Packages (CSP) are extensively utilized in electronic devices. At our facility, we employ the Nordson DAGE Ruby X-ray and Nordson Quadra 5 X-ray Inspection Systems for ultra-high-resolution inspections in PCB assembly.

X-Ray-pcb-assembly-services The X-ray Inspection System of choice:

Quadra™ 5 is the X-ray inspection system of choice for sub micron applications such as PCB and semiconductor package inspection, counterfeit component screening and finished goods quality control. The Nordson DAGE XD7600NT and Nordson Quadra 5 stand as exceptional machines designed for a comprehensive range of PCBA inspection tasks. These systems serve as invaluable tools aiding R&D engineers in diagnosing highly complex PCB assemblies, thereby accelerating the schedules of their development projects.

The Most Powerful Tool for Engineers:

High Precision Inspection: Our ultra-high-resolution inspection capabilities ensure meticulous examination of PCB assembly components, including BGAs and CSPs.
R&D Support: These advanced inspection systems provide crucial support to research and development engineers, facilitating accurate diagnosis and swift progress in project timelines.

Free 3D-Xray PCBA Debugging Support for New Engineers

For free 3D-X Ray PCBA debugging support, engineers can reach out if you encounter challenging bugs on your prototyping samples. Our experienced engineers employ systematic approaches and proven debugging techniques to resolve complex PCB design issues efficiently. It's a valuable resource for new engineers seeking assistance with intricate problems in their projects.

For more details, please fell free to contact us. We would be more than happy to help you.
